Tray Window

The tray window is CueMate's quick access entry point. Through the system tray icon, you can quickly view data statistics, switch application states, and modify common settings without opening the main window for daily operations.

1. macOS

On macOS, the tray icon is located in the menu bar area at the top right corner of the screen.

1.1 CueMate Icon

Screen top menu bar:

Find the CueMate running icon:

Right-click

Right-clicking the tray icon brings up the native system menu with the following quick actions:

• ○ Show Mode
• ● Hide Mode
• ○ Interactive Mode
• ● Click-through Mode
• Exit

Menu Item	Description
Show Mode	Show floating control bar and all windows
Hide Mode	Hide floating control bar and all windows (tray window not affected)
Interactive Mode	Windows can be clicked and dragged normally, mouse clicks don't pass through
Click-through Mode	Windows remain visible, but mouse clicks pass through to underlying applications
Exit	Completely exit CueMate application

Click-through Mode Description

Click-through mode is used in interviews or other scenarios where you can see CueMate floating window content (such as AI answers) while not affecting operations on other applications.

• Interactive Mode: Floating window can be clicked, dragged, and resized, suitable when you need to interact with the floating window
• Click-through Mode: Floating window content is visible but mouse clicks pass through, suitable for viewing answers during interviews while operating other software (such as online coding)

Use Cases:

• Need to view answers during interviews but don't want to block the screen, e.g., online coding
• View prompts in click-through mode while operating interview or other software
• Switch to interactive mode when you need to interact with the floating window

Keyboard Shortcut: ⌘⇧CM (Command + Shift + C + M) to quickly switch between the two modes

TIP

For more detailed click-through mode settings, refer to System Settings - Click-through Mode

Left-click

Click the CueMate icon in the menu bar to open the tray window.

1.2 Tray Window

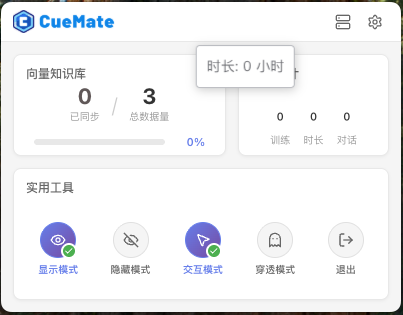

The tray window main interface is divided into three areas: top title bar, data statistics area, and utility tools area.

Top Title Bar

• CueMate Logo: Displays application brand identity
• Settings Button: Click to enter system preferences page

Data Statistics Area

The data statistics area displays two cards:

• Vector Knowledge Base Card: Shows synced count, total data volume, and sync progress bar
• Usage Statistics Card: Bar chart showing training count, duration (hours), and average conversations

Utility Tools Area

Button	Description
Show Mode	Show floating control bar and all windows
Hide Mode	Hide floating control bar and all windows (tray window not affected)
Interactive Mode	Windows can be clicked and dragged normally, mouse clicks don't pass through
Click-through Mode	Windows remain visible, but mouse clicks pass through to underlying applications
Exit	Completely exit CueMate application

TIP

The currently active mode is highlighted in purple with a green checkmark. Shortcut ⌘⇧CM quickly switches between interactive/click-through modes.

1.3 System Preferences

Click the settings button at the top to enter the system preferences page.

Setting	Description
LLM Model	Select the currently used large language model, dropdown shows all configured models
Language	Select interface display language: Simplified Chinese, Traditional Chinese, English
Docker Image	Control Docker container behavior when exiting app: Don't Stop on Exit (default) or Stop on Exit
Dock Icon	Control application display status in Dock bar: Hide or Show

Docker Image Settings

Docker image settings control the behavior of backend Docker containers when exiting the CueMate application.

• Don't Stop on Exit (default): Docker containers keep running when exiting the app, no need to wait for container startup next time, faster startup
• Stop on Exit: Stop all CueMate-related Docker containers when exiting the app, freeing system resources

TIP

If you deploy Docker services on a remote server, it's recommended to select "Don't Stop on Exit" to keep containers running on the server.

Dock Icon Settings

Dock icon settings control whether the CueMate application icon is displayed in the macOS Dock bar at the bottom.

• Hide: CueMate icon not shown in Dock bar, application only accessible through top menu bar tray icon, cleaner desktop
• Show: CueMate icon shown in Dock bar, convenient for quick app switching via Dock

TIP

If your MacBook has a notch screen and menu bar space is limited, it's recommended to set Dock icon to "Show", so even if the tray icon is hidden by the system, you can still access the app through the Dock bar.

WARNING

When switching Dock icon from "Show" to "Hide", it only closes the current runtime Dock icon display. If you previously pinned CueMate to the Dock ("Keep in Dock"), you need to manually remove the pinned icon, otherwise the icon will still appear in the Dock next time you open the app.

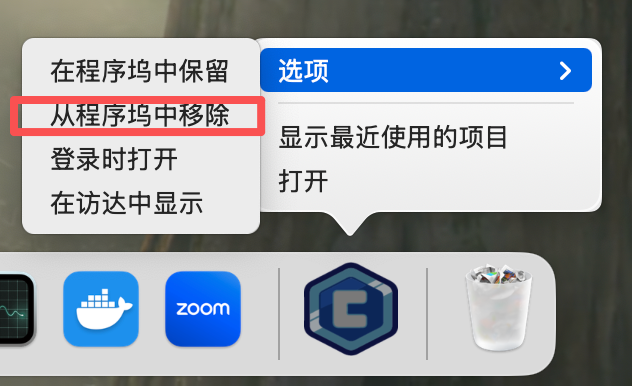

Manually Remove Icon from Dock

Right-click the CueMate icon in the Dock bar and select "Remove from Dock". After removal, the Dock will no longer show the icon when opening CueMate again.

1.4 Server Configuration

When CueMate is deployed in Server Mode, a "Server Configuration" button will appear at the top of the tray window page. Click to enter the server configuration page to modify remote server connection information.

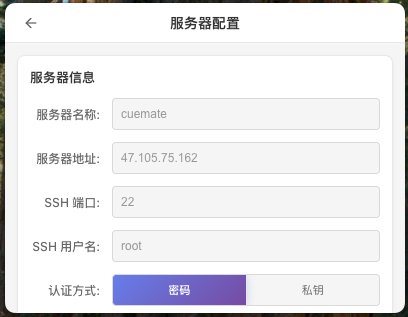

Server Configuration Page

The server configuration page is used to configure remote server SSH connection information and service ports.

Configuration Item	Description
Server Name	Custom server name for easy identification and management
Server Address	Remote server IP address or domain name
SSH Port	SSH connection port, default is 22
Username	SSH login username
Authentication Method	Supports password authentication or private key authentication
Password/Private Key	Fill in the corresponding password or private key content based on authentication method
Deploy Path	CueMate service deployment directory on the remote server

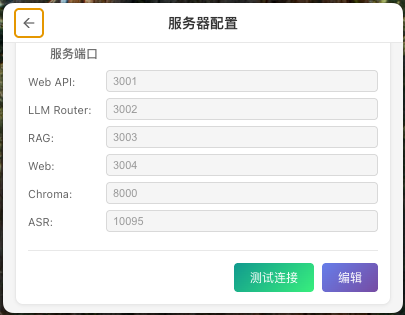

Port Configuration

The server configuration page also allows configuring port numbers for each service:

Port Configuration	Default	Description
Web API Port	3001	Web API service port
LLM Router Port	3002	LLM routing service port
RAG Service Port	3003	Vector retrieval service port
Web Port	3004	Web frontend service port
Chroma Port	8000	Chroma vector database port
ASR Port	10095	Speech recognition service port

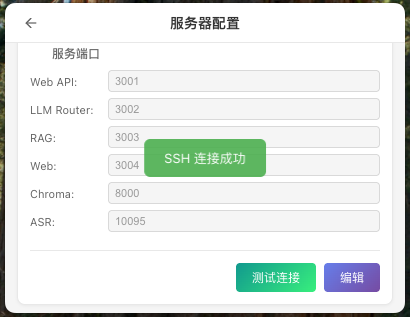

Test Connection

After configuration, click the "Test Connection" button to verify if the SSH connection is working properly. A green message indicates success, red indicates an error.

TIP

It's recommended to test the connection before saving the configuration to ensure server connection information is correct.

Save Configuration

Click the "Save" button to save the configuration locally. After saving successfully, CueMate will use the new server configuration to connect to remote services.

WARNING

After modifying server configuration, you need to restart the CueMate application for the new configuration to take effect.

Connection Error Handling

If the server configuration is filled incorrectly, or the service on the remote server is not started, the main window will display a connection error page:

The error page displays:

• Connection failed target address (e.g., http://127.0.0.11:3004)
• Specific error message (e.g., ERR_CONNECTION_TIMED_OUT)
• "Retry Connection" button

Common Error Causes:

• Server address filled incorrectly
• SSH port or service port configured incorrectly
• CueMate service not started on remote server
• Firewall blocking port access
• Network connection issues

TIP

When encountering connection errors, you can modify the configuration through the "Server Configuration" page in the tray window, because the tray window is rendered locally and is not affected by remote server connection status.

Manually Modify Configuration File

If the tray window cannot operate normally, or you need to batch modify configurations, you can directly edit the configuration file:

Configuration File Location:

# macOS
~/Library/Application Support/cuemate-desktop-client/config/server.json

# Open with VS Code
code ~/Library/Application\ Support/cuemate-desktop-client/config/server.json

# Open with vim
vim ~/Library/Application\ Support/cuemate-desktop-client/config/server.json

# View content with cat
cat ~/Library/Application\ Support/cuemate-desktop-client/config/server.json

Configuration File Format:

{
  "version": "v0.1.0",
  "mode": "server",
  "server": {
    "id": "server-001",
    "name": "My Server",
    "host": "192.168.1.100",
    "sshPort": 22,
    "username": "root",
    "authType": "password",
    "password": "your-password",
    "privateKey": null,
    "passphrase": null,
    "deployPath": "/opt/cuemate",
    "ports": {
      "webApi": 3001,
      "llmRouter": 3002,
      "ragService": 3003,
      "chroma": 8000,
      "asr": 10095,
      "web": 3004
    }
  }
}

WARNING

After manually modifying the configuration file, you need to restart the CueMate application for changes to take effect.

Tray Window vs Web System Settings

Server configuration can be modified in two locations:

Location	Features
Tray Window (Recommended)	Rendered locally, does not depend on remote server, can operate normally even if server connection fails
Web System Settings	Requires connection to remote server to open, may not be accessible if configuration is wrong

TIP

Recommended to use tray window to modify server configuration. The tray window runs locally and is the most reliable configuration entry. When the Web page cannot be opened due to server connection issues, the tray window can still be used normally.

For server configuration in Web system settings, refer to System Settings - Server Deployment Configuration.

1.5 Tray Icon Missing?

If the tray icon disappears, check: System Settings > Control Center > Menu Bar Items, confirm the CueMate icon is not hidden.

2. Windows

Under Development

The Windows version is currently under development, stay tuned.

If you have any suggestions or requirements for the Windows version, feel free to provide feedback through:

• GitHub Issues: https://github.com/cuemate-chat/cuemate/issues
• Email: nuneatonhydroplane@gmail.com
